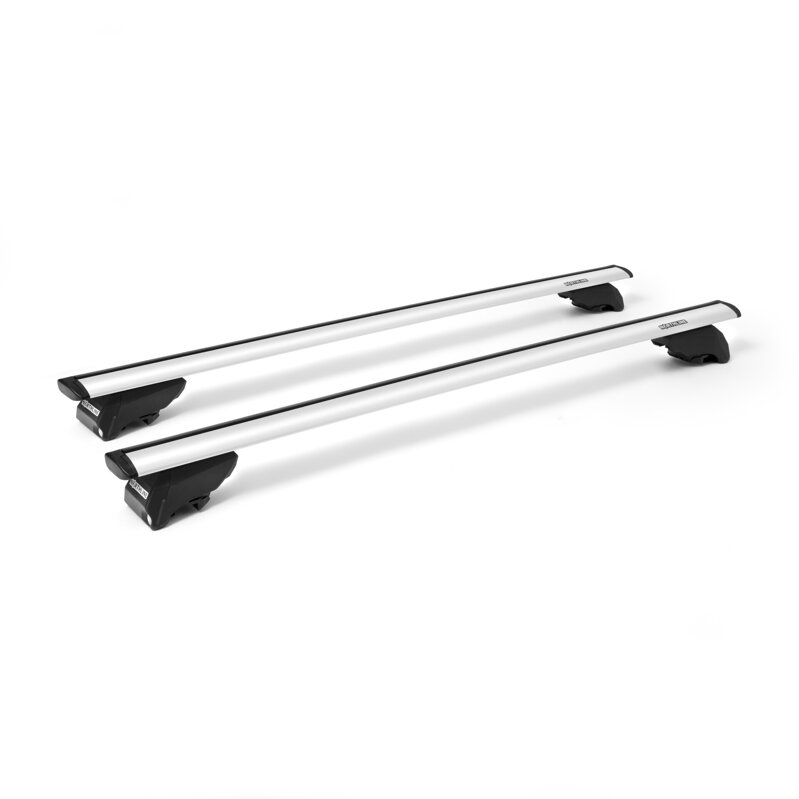

The aerodynamic Northline FlyWing Rail-In S roof racks for integrated roof rails are designed with an airfoil-shaped load profile, which significantly reduces the drag coefficient. This design ensures minimal noise even at high speeds and helps maintain low fuel consumption.
The main advantage of the FlyWing racks is the precisely engineered mounting foot, which, thanks to a double clamping mechanism, ensures exceptionally accurate and secure attachment. Unlike standard racks, where clamping occurs with a single clamp and a passive contact surface, the FlyWing foot features a double leverage system between the rear contact surface and the front steel jaw.
This system allows the clamping mechanism to precisely adapt to the slope of the integrated roof rail, ensuring a safe and stable attachment. Additionally, the outer clamp is hardened for maximum strength and long-lasting durability.
Another advantage is that the mechanism and load-bearing components are made of steel.
Easy access for installing the 'T' screws is ensured by the flip-up mechanism on the side covers of the racks.
Thanks to the geometry of the clamping jaw, the racks are also suitable for some open roof rails with a so-called sharp outer edge (VW, Škoda, Audi, Seat).
A damping strip with a numerical scale in the foot groove allows for precise distribution of the rack's overhang.
Covering the lower groove eliminates the so-called whistle effect.
Technical specifications:
- Shape and material: Aluminum, aerodynamic profile 1080 mm
- Load capacity: 100 kg (check the vehicle roof rail capacity with the dealer or in the vehicle registration)
- Weight: 4.7 kg
- Foot material: Steel core, reinforced plastic
- "T" groove: Yes, universal 20 mm
- Lockable: Yes
- CityCrash certified: Yes
Vehicle list:
- FORD FIESTA ACTIVE, 5-door Hatchback with integrated roof rails 18->
- MINI CLUBMAN, 5-door Hatchback with integrated roof rails 16->
- MINI COOPER, 5-door Hatchback with integrated roof rails 14->
- OPEL ASTRA Sports Tourer, 5-door Wagon with integrated roof rails 10-15
- SEAT IBIZA ST, 5-door Wagon with integrated roof rails 10-17
- SEAT LEON ST, 5-door Wagon with integrated roof rails 14-20
- SUZUKI SX4 S-CROSS, 5-door Hatchback with integrated roof rails 14->
- SUZUKI VITARA, 5-door SUV with integrated roof rails 15->
- ŠKODA FABIA, 5-door Wagon (MK.III) with sharp-edged roof rails 15-21
- ŠKODA KAMIQ, 5-door SUV with sharp-edged roof rails 20->
- TOYOTA AURIS, 5-door Wagon with integrated roof rails 13-19
- TOYOTA COROLLA, 5-door Wagon with integrated roof rails 19->
- TOYOTA YARIS CROSS, with integrated roof rails 21->
165 €
